Regions and markers are integral to the Strata workflow. In REAPER, regions define passages in tracks, and markers function as bookmarks. Strata subprojects use regions and markers to apply structure to layers as follows:
Regions define specific sounds of one or more layers and subtracks and have different durations depending on the layer and sound. For example, in the Historical Firearms collection, each subproject represents a different type of firearm and each layer has multiple variations of a firearm shot. Regions separate each shot so that you can play and experiment with each composite shot sound, or each layer that forms part of the composite sound.
Markers indicate starting points of different sets of layers. In the Historical Firearms collection, there is a marker at the beginning of each shot, so you can use markers to quickly navigate from one shot to another.
Markers and regions also use the custom SWS colors for organizational purposes:
Markers are colored sequentially to reflect their positions in the timeline.
Regions are colored according to a combination of timeline sequence and Render Matrix Track Layer Output. Refer to the individual collection documentation for specific details.
There are several ways to interact with regions and markers in REAPER. Use the following short procedures to set REAPER preferences recommended for use with Strata.
To set region and marker options:
In the REAPER menu bar, click View > Region/Marker Manager. The Region/Marker Manager window opens.
Select the Regions and Markers check boxes. All regions and markers are listed in the table in the window. Regions are indicated with an R in the # column, and markers are indicated with an M.
Right-click any region or marker and ensure that the following options are selected:
List markers, regions, and take markers separately
Show track render menu nested by folders
Seek playback when selecting a marker or region
Dock Region Manager in Docker
Right-click the ruler, then click Ruler layout and ensure that the following options are selected:
Display project markers in lanes
Display project regions in lanes

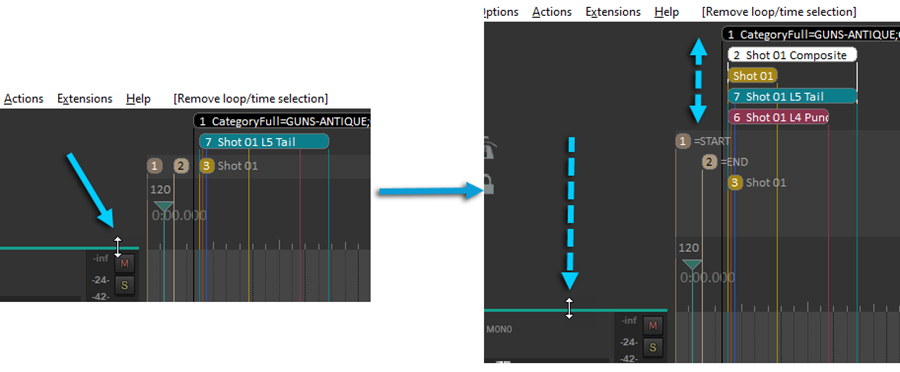

Click and hold the top of the track window near the bottom of the ruler and drag down to expand the ruler and display more regions, as demonstrated in the following image:
The region names in Strata subprojects are designed for use when rendering sounds into output files that you can then use in other software such as Wwise. Most of the region names are part of the FXName portion of the UCS file naming convention used for all audio files in Strata.
The start, end, and length of the regions facilitate the rendering of each layer of a sound.
You can use the search filter in the upper left of the Region/Marker Manager to filter the list by name, which can be useful if your subproject contains a large number of regions and markers. Enter all or part of the marker or region name to filter the list:
